$55.00

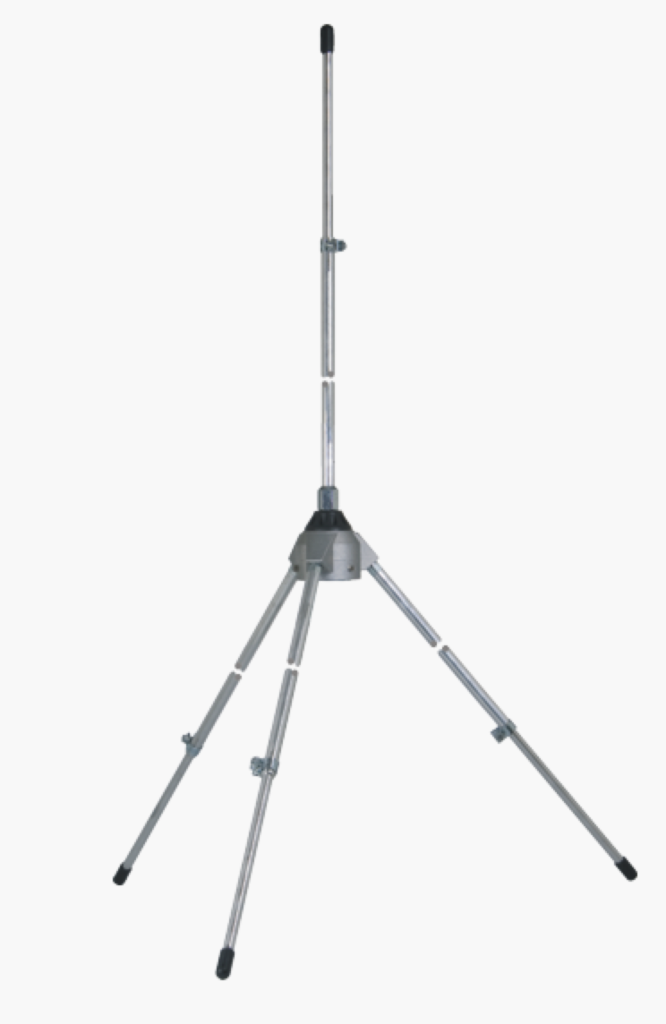

Sirio GPA 135-175 Mhz ground plane base antenna - 300 Watts,
[gp3575]

Sirio GPA 135-175 Mhz ground plane base antenna - 300 Watts,
Sirio GPA 135-175 mhz is 1/4 λ VHF base antenna for professional 135-175 mhz. Manufactured from robust aluminim alloy and weather proof plastics.
High quality materials garrantee maximum effectivеness and long term exploitation.

Sirio GPA 135-175 VHF antenna type groundplane for base station applications in frequency range 135-175mhz tunable base antenna.



Features:

  • Base station antenna, Mono-band
  • Omnidirectional, Unity gain
  • Made of aluminium alloy 6063 T-832
  • Perfect protection against the worst weather conditions
  • Tunable by whip length adjusting
  • Side mast mounting allowed by optional bracket FT-2 code 2510004.00

    Electrical Data

  • Type: 1/4λ ground plane large band
  • Frequency range: tunable 135 - 175 MHz
  • Impedance: 50Ω
  • Radiation (H-plane): 360° omnidirectional
  • Radiation (E-plane): beamwidth @ -3 dB = 86°
  • Radiation angle: 0°
  • Polarization: linear vertical
  • Gain: 0 dBd - 2.15 dBi
  • Bandwidth @ SWR ≤2: ≥3.7 MHz @ 40 MHz
  • SWR @ res. freq.: ≤ 1.2 @ start freq.
  • Max. Power (CW) @ 30°C: GPA 40-70: 300 Watts
  • Connector: UHF-female

    Mechanical Data

  • Materials: Aluminium, Chromed brass, Nylon
  • Wind load / resistance: 54 N at 150 Km/h / 150 Km/h
  • Wind surface: 0.07 m²
  • Height (approx.): 960mm
  • Weight (approx.): 520 gr
  • Mounting mast: Ø 35-40 mm
  • Quantity: Reviews
